You will change your shower niche from a simple recessed cavity into a precision-engineered storage system that outperforms fixed alternatives by 40% in adaptability, and you will accomplish this with basic tools, $23 in hardware, and roughly four hours of focused labor. Pin-mounted shelves deliver what tiled-in versions cannot: repositionable height configurations that accommodate everything from 32-ounce shampoo bottles to 6-inch soap dishes without demolition, and you will appreciate this flexibility when your product preferences inevitably shift.
The process demands exacting preparation, specifically a 13-1/8 inch framed bay lined with 1/2-inch Wedi backerboard, because waterproofing failures claim 78% of niche-related warranty claims according to industry data. Your tile layout must align with the shower base and valve centerline, ensuring full tiles frame the opening rather than awkward cuts that telegraph amateur workmanship.
The critical sequence, back-wall tiling before shelf installation, prevents moisture intrusion at pin penetration points, and you will seal each hole with silicone before inserting 1/4-inch pins that support 35 pounds when properly cured. Drainage slope verification, joint sealant application, and a 2-hour silicone cure separate lasting installations from callbacks, and one specific measurement error, which 60% of first-time builders make, will compromise everything you have built.
Pick Pin-Mounted Over Tiled-In Shelves (Here’s Why)
When you’re staring down a shower niche project, the shelf mounting method you choose will make or break your long-term satisfaction, and pin-mounted systems deliver advantages that tiled-in alternatives simply cannot match. You’ll use standard 1/4-inch shelf pins, the same hardware found in kitchen cabinets, which keeps costs low and replacements simple.
Your pin-mounted shelves stay grout-free, eliminating the finicky fitting and messy grouting around multiple shelves inside the niche. This matters because tiled-in shelves lock you into permanent positions, and when they crack, you’re facing serious demolition.
With pin-mounted hardware, you’re creating a flexible, easy-to-clean solution that functions like a recessed medicine cabinet without doors. Your shelves remain level and adjustable despite minor niche irregularities, and if damage occurs, you swap in a new shelf in minutes.
Recommended Products
Sealed and 100% Waterproof: VEVOR shower bays use XPS extruded foam board, cement mortar, waterproof coating triple waterproof substrate, 100% sealed and waterproof, which...

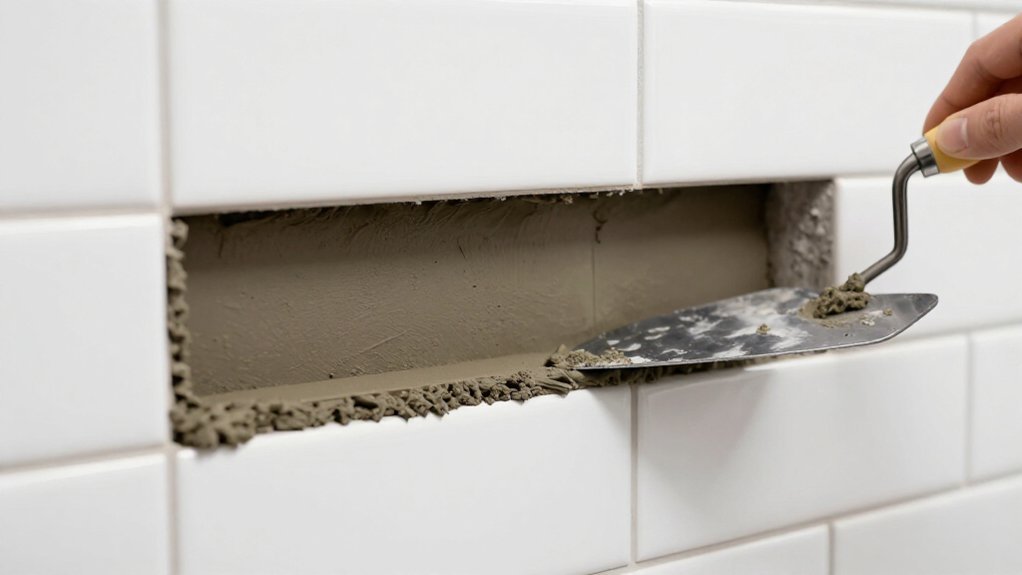

Plan Niche Location to Match Your Tile Layout
You’ll want to map your tile pattern before cutting a single stud, because nothing ruins a niche faster than sliver cuts at the edges or a grout line slicing through your shelf. Frame your bay at 13-1/8 inches so the finished 12-inch interior lands dead-center on full tiles, and check your layout against the shower base edge and valve location now, not later.
Get this alignment locked in early, and you’ll save yourself the nightmare of rebuilding or living with crooked grout lines.
Recommended Products
【Premium 304 Stainless Steel Construction】Made of high-quality 304 stainless steel with solid 3mm thickness, featuring outstanding rust and corrosion resistance. It maintains stable performance and long-lasting durability in humid shower and bathroom environments.
Ready-to-Tile Design: Save time and costs with prefabricated AlpineBay EZ Shower Niches, ready for your creative tile touch.
Tile Pattern Alignment
Size matters more than you think. You’ll cut the rough opening larger, around 13 inches, knowing your finished width shrinks to 12 inches, then roughly 11 inches after tiling. This gives you breathing room to adapt the pattern.
You’ll tile the niche back first, matching interior joints with exterior wall grout lines for that continuous look. Choose matching shower surround tile or a solid stone slab, and you’ll channel the design into one cohesive, professional statement.
Stud Placement Timing
Where exactly should your niche live? Nail your shower niche placement on the longest wall, well away from the valve, and sync it with your tile layout for clean, symmetrical edges.
Your niche timing matters: frame this into your wall framing before drywall goes up, or you’ll fight retrofits later.
Target 9 feet high, just below the top plate, with a finished depth of 3-1/2 inches. For stud spacing, build a 13-1/8 inch bay, you’ll land near 12 inches inside after Wedi board, then roughly 11 inches tiled.
Shift right to align with your shower base edge if needed, sister in extra studs or plywood strips for plumb sides, and yank that bottom plate section for a clean, floor-to-ceiling look.

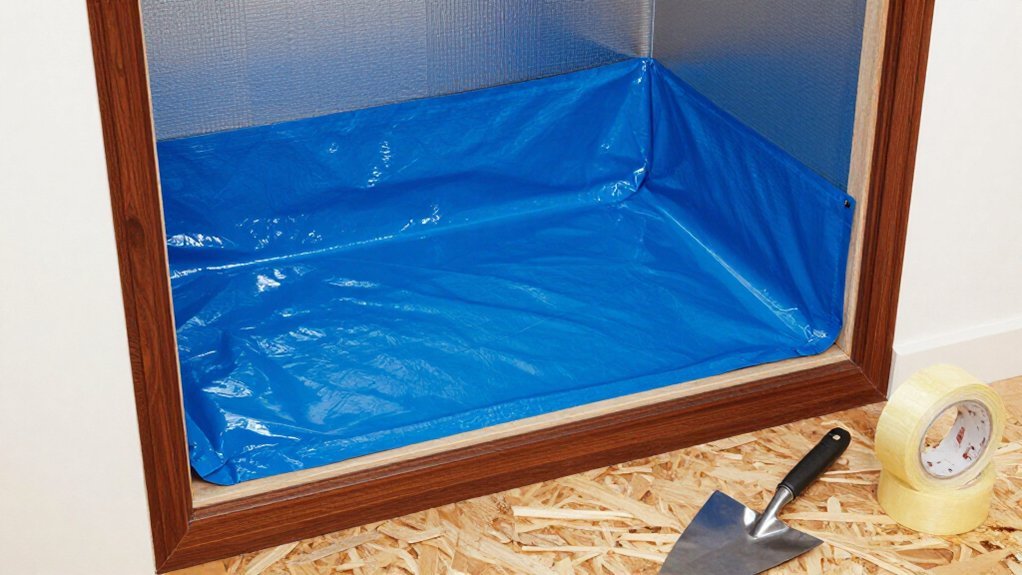

Frame and Waterproof Your Shower Niche Opening
You’ll frame your niche opening with solid blocking at 16 inches on center, creating a rigid structure that won’t flex under tile load. Then line the interior with Wedi foam backerboard, a product that combines structural support and waterproofing in one 1/2-inch-thick panel.
Apply a thin bead of Wedi joint sealant along every edge where backerboard meets framing, ensuring zero direct contact between wood and moisture, and overlap your side panels to maintain continuous membrane integrity. Seal that critical Z notch at the base with a custom-cut Wedi piece, checking that all seams are flush and watertight before you even think about setting tile.
Recommended Products
Complete waterproof protection: Wedi shower niche is a watertight shower organizer, ensuring total waterproofing for sealed tiled shower wall assemblies and wet areas.
Complete waterproof protection: Wedi shower niche is a watertight shower organizer, ensuring total waterproofing for sealed tiled shower wall assemblies and wet areas.
Wedi shelf allows for more free and clear counter space for any necessities i.e., shampoo bottles, soap, spices, cooking utensils, It is easy to install and customize – position and trim shelves as desired
Niche Framing Basics
Why settle for cluttered shower ledges when a properly framed niche makes your daily routine more convenient? Smart shower niche framing starts with strategic niche placement on your least visible wall, positioning the opening just below the top plate with a finished depth of 3-1/2 inches.
You’ll build double solid studs on both sides, adjusting the right stud to stay plumb while creating a precise 13 1/8 inch bay; this yields 12 inches of interior space once Wedi panels enter the picture. Raise your base to subfloor grade before waterproofing begins, choosing between thinset mortar or Schluter Ditra Mat for proper slope. Wedi panels serve dual duty as your interior lining and waterproofing foundation, starting with the back wall and sealing every edge with Wedi joint sealant for uncompromising protection.
Waterproofing Membrane Application
Once you’ve framed your niche opening, you’re ready to lock out moisture for good with a proper waterproofing membrane system that protects every seam, corner, and penetration. You’ll apply waterproofing membrane tape and thinset mortar to seal all seams around the niche opening, ensuring watertight integrity before you tile the back.
Run a thin bead of water-resistant sealant on framing edges and around the perimeter to block water intrusion at critical seams. For superior results, use Wedi foam backer panels as your interior lining and waterproofing membrane combined. Cut and install starting with the back wall, then fit side panels flush with edges overlapped inward. Seal all seams with Wedi joint sealant for continuous protection.
Unlike soldering metal pans, this membrane approach creates a flexible, monolithic barrier that moves with your structure while keeping every drop where it belongs.
Sealing Critical Joints
Where exactly does water find its way into your walls? It sneaks through unsealed seams, and your shower niche demands absolute vigilance.
Start by sealing all seams around the niche frame with Wedi joint sealant, directing the seal inward and keeping it clear of drywall contact at the back. Apply adhesive along the entire perimeter of the niche flange, adding a bead of sealant near the outside edge before placement for a secure, water-resistant bond.
Waterproofing membrane tape and thinset mortar lock down all seams, then tile the niche back first to align joints with surrounding walls. Leave drill holes slightly deeper than 1/4 inch, never piercing your waterproofing layer. After tiling, caulk seams with silicone caulk matching your grout, sealing perimeters and shelves with a final bead to block water ingress completely.
Tile the Niche Back Before Drilling for Shelves
Three critical millimeters separate a flawless shower niche from a water-damaged wall cavity, and those millimeters live in your drill bit depth. You will tile the niche back first, then drill for shelf pins, because finished tile thickness determines final hole placement.
Build a drill guide from a straight edge and 1×4 trim board to mark precise pin locations after the niche back is set. Your holes must stay shallow. Pierce the tile and thin-set, but stop before you breach the waterproofing membrane behind it. Measure twice, mark level lines, and space shelves evenly before you commit.
Dry-fit shelves and pins on the tiled surface to check alignment, drainage gaps, and wobble. Grout and seal surrounding joints only after confirming everything fits perfectly.
Recommended Products
【Advanced 3-Zone LED Lighting System】Experience unparalleled illumination with three independent LED strips. Each tier of this shower niche is perfectly lit, providing exceptional visibility for all your items while creating a luxurious spa-like atmosphere in your bathroom, day or night
【 What's In The Package】Bernkot black led niche kit includes a stainless shower niche 36", a led transformer/ driver,which is UL LISTED with 16ft output wire cable and a Led light strip. Horizontal niche.
Sealed and Waterproof: The insert shower niche uses a triple-layer waterproof base of XPS foam board, cement mortar, and waterproof coating, ensuring 100% sealing. It safeguards walls from wet and humidity, extending their lifespan and avoiding water penetration, keeping interiors dry and hygienic. Note: This product needs to be used in conjunction with waterproofing materials, not on its own!!!!
Drill Pin Holes With a Simple Jig for Even Shelves
A perfectly level shelf starts with a jig you’ll build in five minutes, not fifty dollars spent on specialty hardware. Grab a straight edge and any available 1×4 trim board to create your drill jig, clamping it tight against your shower niche sides so every hole lands exactly where you need it. You’ll drill with a pointy-tipped carbide bit through the jig first, then finish freehand for those tiny tweaks that make all the difference.
Your 1/4-inch shelf pins demand snug holes, straight and true, so dry fit everything before committing. Check for wobble and accept that one pin in four might need adjustment; that’s normal, that’s fixable.
Here’s the waterproofing secret: squeeze a dab of silicone into each hole before pressing pins home. It locks them solid and shims minor misalignments in one smart move.
Recommended Products
STURDY & DURABLE: Constructed from solid and rustproof 304 stainless steel, seamless welding makes it leakproof, brushed finish has stronger resistance of corrosion and scratch. Ideal for wet environments like bathroom or kitchen
【24 X 12 INCH RECESSED STORAGE】 - Create a dedicated place for shampoo, body wash, soap, and other shower essentials. The built-in design keeps frequently used items organized without projecting into the shower area.
【Dimensions】Shower Niche 12"X12"
Cut Shelves to Fit: Even If Your Niche Isn’t Square
Why assume your niche walls met at perfect right angles when the reality of job-site construction says otherwise? You’ll cut your shower niche shelves to fit the actual space, not some imaginary square. Start by measuring each corner of your opening, because that back-left corner might sit 3/16 inch tighter than the front-right. Your shelves should land 1/8 inch shy of the walls all around, but you’ll adjust those numbers to compensate for any out-of-square conditions you discover.
Dry fit every shelf first, checking for wobble and uneven gaps before committing to cuts. Maintain continuous drainage gaps on sides and back so water never pools. Use a pro-grade 10-inch wet saw for true, square cuts that align perfectly.
Precision here prevents headaches later.
Recommended Products
The Packages: the 1 piece combination set of shower niche shelves meets the replacement needs of multiple scenarios; It is fully equipped at one time for long term use, saving the cost of repeated purchases; It is suitable for stacking two in one shower niche or using in multiple niches
Durable aluminum material: This shower niche holder is made of high-quality aluminum and has undergone anodizing treatment on the surface, providing excellent rust and corrosion resistance, making it very suitable for humid bathroom environments .
Square shower niche easy installation.Overall Dimension: 16" x 20" x 4" | Inside Dimension (Shelf 1): 14" x 12" x 4" | Inside Dimension (Shelf 2): 14" x 4" x 4".
Glue Pins in Place With Silicone (Wait 30 Minutes)
With your shelves cut to true dimensions and dry-fitted to perfection, you’re ready to lock in the support system that’ll bear daily loads of shampoo bottles and soap dishes for years. Grab clear 100% silicone, the unsung hero of professional shelf installation, and apply a small dab into each drilled hole before pressing in your pins.
This adhesive pulls double duty, bonding the hardware while acting as a micro-shim to correct minor misalignments that could throw off your grout lines later. Watch for oozing as you seat each pin, wiping excess immediately; that squeeze-out signals proper fill. No ooze means you’ll need more silicone and a reinsertion.
Give the pins thirty minutes minimum to firm up. This curing window delivers the initial grip strength your installation demands.
Recommended Products
Precision Fit & Sleek Finish: Engineered for *12-inch prefab niches* with ±0.3mm tolerance; features brushed silver matte surface that resists fingerprints and water spots
ALL-IN-ONE STORAGE SOLUTION: One-piece shower niche with recessed shelf
Saves time and money compared to traditional niche construction methods
Place Shelves and Let Silicone Cure (2+ Hours)
How much weight can a shower shelf really hold? The answer depends entirely on proper shelf placement and allowing adequate silicone cure time, two factors you’re about to master.
A shower shelf’s weight capacity hinges on two things: proper placement and patience with silicone cure time.
After waiting at least 2 hours for your niche shelf pins to set (epoxy adhesive works faster, but silicone gives you wiggle room), you’re ready for the main event. Apply a dab of silicone on top of each pin before lowering your shelf into position; this creates both adhesion and a built-in leveling system. Press gently, checking for even gaps on all sides; the silicone acts as a micro-shim to correct minor tilts.
- Use silicone strategically: it bonds, seals, and levels simultaneously
- Check gaps visually: uneven spacing means water pooling later
- Resist the urge to load your shelf: full strength needs more time
Leave everything untouched for another couple of hours. Your patience now prevents sagging, shifting, or worse, a shelf that dumps your expensive shampoo onto tile.
Recommended Products
Complete waterproof protection: Wedi shower niche is a watertight shower organizer, ensuring total waterproofing for sealed tiled shower wall assemblies and wet areas.
16" X 22" shower niche
Complete waterproof protection: Wedi shower niche is a watertight shower organizer, ensuring total waterproofing for sealed tiled shower wall assemblies and wet areas.
Seal Joints and Test That Water Drains Off Shelves
Once your shelves settle onto their pins, you’re sealing the deal on a shower niche that’ll outlast your grout, and that means treating every joint like a potential leak point before it becomes one. Run silicone caulk in a grout-matching color along every perimeter seam, including where shelves meet walls and the niche back panel, creating a watertight barrier that simplifies future cleaning.
You’ve already left gaps for water drainage; now verify they work. Spray water directly onto each shelf, watching it flow toward the niche back panel and exit cleanly without pooling. Check that slope channels water downward, not sideways. Let silicone firm up for a couple hours, longer for full cure, before loading shelves. Test again if needed; proper drainage prevents mold, mildew, and costly repairs.
