Sarah Chen upgraded her dim 12-foot galley kitchen using just 18 feet of 3000K LED strip lighting, cutting her energy costs by 60% compared to her old fluorescent tubes.
You’ll achieve similar results by following a proven three-step system that balances technical precision with straightforward execution, starting with proper power calculations (wattage per foot multiplied by total length, plus 20% headroom) and ending with concealed wiring that looks factory-installed.
The real challenge isn’t the installation itself; it’s avoiding the polarity mistakes and voltage drop issues that ruin most DIY attempts before you even flip the switch.
Plan Your Under-Cabinet Layout and Size the Power Supply
Before you cut a single strip or mount a single bracket, you’ll need to map your kitchen’s electrical terrain with the precision of a contractor and the foresight of a systems engineer. The difference between a professional-grade installation and a disappointing DIY project often comes down to what happens in this planning phase.
Start your layout planning by identifying gaps beneath cabinets; you’ll likely need 2 separate power supplies when sections differ markedly in LED strip length or accessibility. Your brightness calculation drives everything: multiply total footage by watts per foot, then add 20% buffer for transformer capacity. For 28 feet at 2.9W/ft, that’s 81W demanding a 100W supply.
Select your color temperature. 3000K warm white works well for kitchen task lighting, and verify wiring polarity remains consistent across all connections. Complete your pre-test installation by unrolling strips, connecting power, and confirming output before permanent mounting.
Recommended Products
Warm White LED: With 300 LEDs and a 3000K color temperature, you'll enjoy an incredibly warm and bright illumination with improved color quality. Light up those dark rooms, cabinets and any corners with ease.
💡Wonderful Under-counter Light Fixtures -- Works great with warm bright color and super brightness, each light bar has 33 LEDs, covering a wide range. The warm light color is pleasant. Great compact light that allows a lot of possibilities.

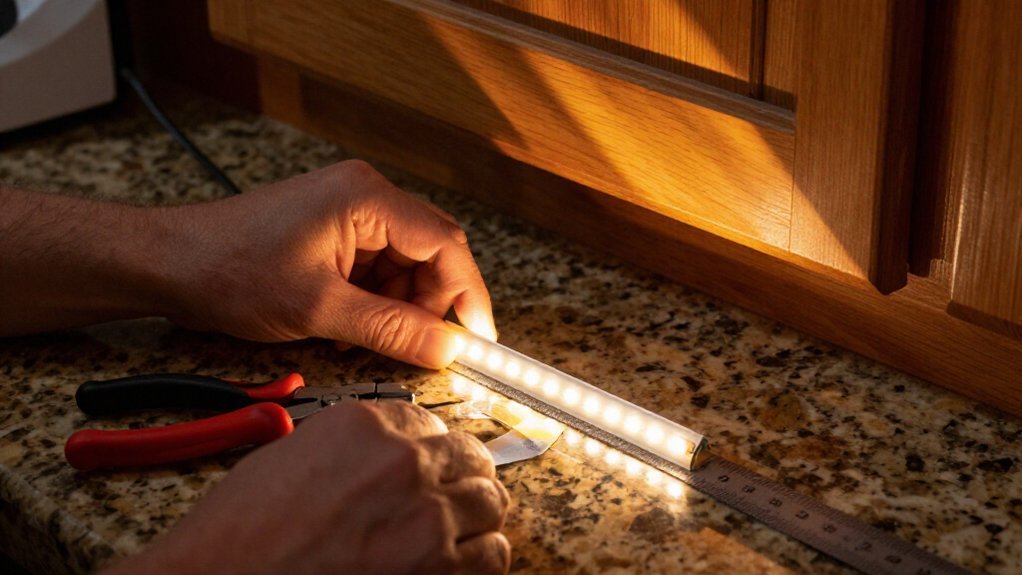

Cut LED Strips to Length and Test Before Mounting
Where exactly should you slice? You’ll cut LED strips only at the marked lines, typically every three diodes, ensuring you don’t damage the circuitry. Measure your under-cabinet length carefully, but don’t fill channels completely; leave end-space for connector clips inside the mounting channels.
After cutting, expose the copper pads and verify polarity before attaching connectors. Test each section by temporarily wiring to power, confirming brightness and color consistency before final mounting. When reconnecting multiple sections, maintain consistent polarity using appropriate strip-to-strip connectors.
This pre-mounting test prevents headaches later, catching issues while adjustments remain simple. Proper cutting and testing ensure your under-cabinet lighting performs flawlessly from day one.
Recommended Products
【High DIY】 Come with 1 roll of 32.8ft/10m COB LED strip lights for kitchen under cabinet, 10 pcs solderless connectors and 10 pcs 6.56ft/2m connecting wires, the strip lights can be cut every 0.975in/2.5cm, according to your actual need to cut into various lengths, then use the solderless connectors to connect the strip lights connecting wires with the strip lights and plug into the power supply to use.
【SUPER BRIGHT】: 1050 lumen super bright strip lights, can easily illuminate the dark areas under the cabinet. 16.4ft tape light with 300 PCS SMD 2835 warm white LEDs, as auxiliary lighting or decorative lighting, is a perfect choice.
Professional quality LED strip lights: With industry leading lifespan and higher lumens output, this is the perfect LED solution for architectural LED lighting, under cabinet lighting, tray ceiling lighting, toe kicks, RVs, boats, motor homes and commercial lighting projects; UL Safety Listed

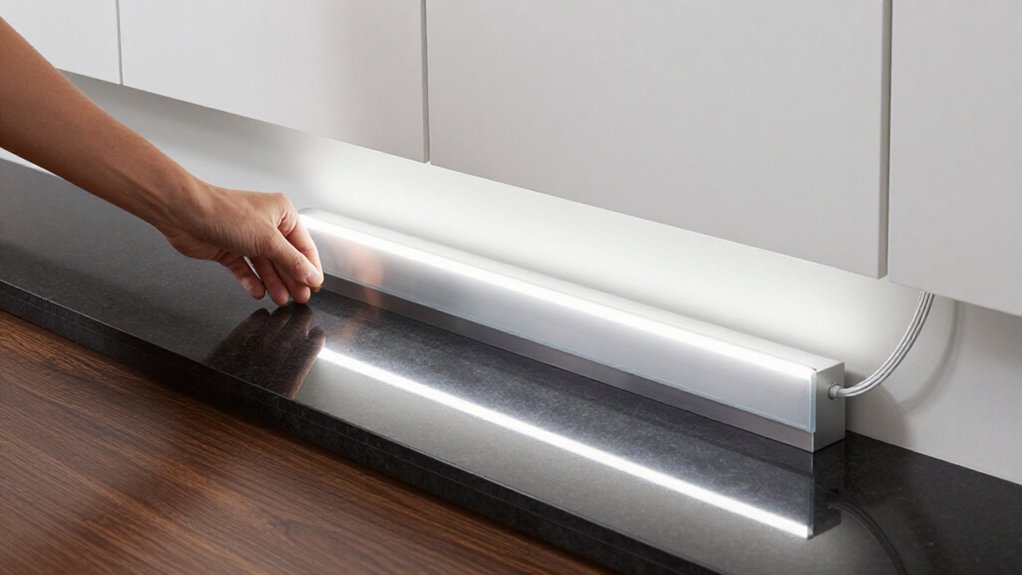

Install Channels, Route Wires, and Connect to Power
With your LED strips cut, tested, and ready, you’re now positioned to turn raw components into a polished, professional installation that rivals custom electrical work.
Cut your mounting channels and diffusion cover to length, leaving one inch at each end for end caps and connector clips. Drill holes through cabinet supports to pass wiring between sections, keeping visible drilling minimal. Slide the LED strip lighting and connectors fully into the mounting channels under cabinets before securing end caps, ensuring wires thread through for clean routing.
Maintain polarity alignment across all strips sharing a power supply for uniform brightness. Temporarily connect to power and test each section. Then finish by hiding excess wiring with cord hiders, snap on the diffusion cover, and admire your finished, custom-grade result.
